Product Description

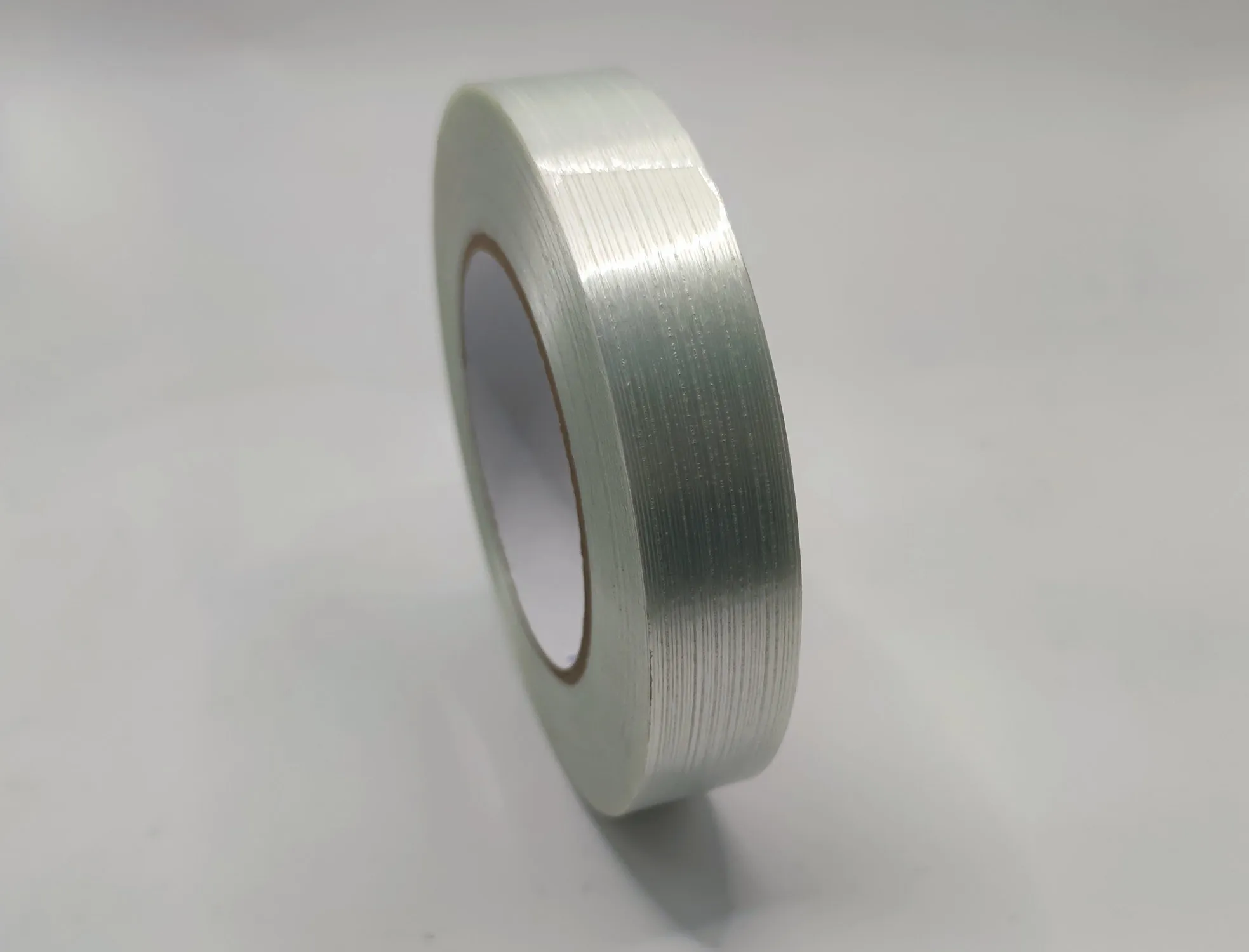

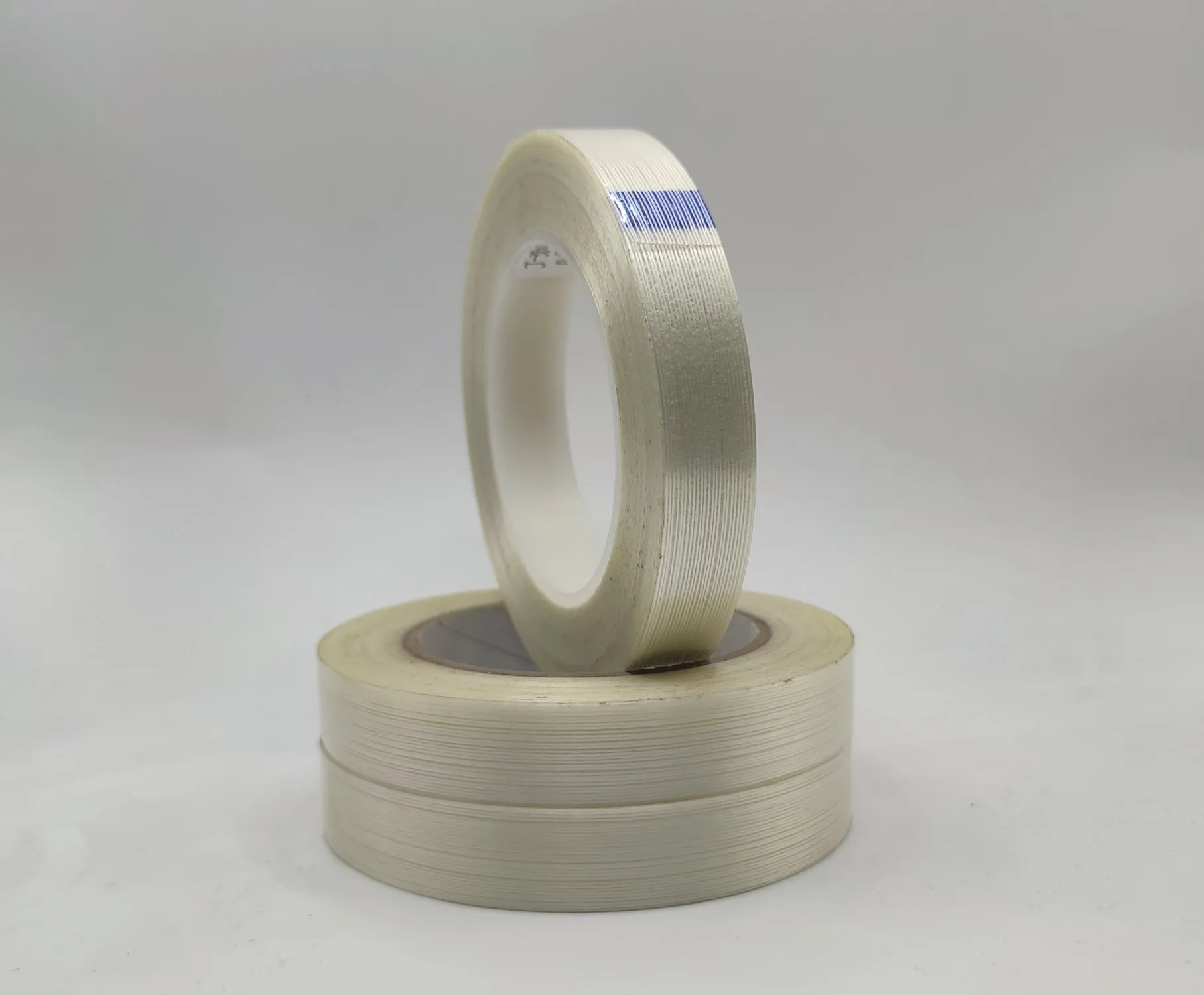

Meet our Advanced Filament Electrical Tape, designed for those who require superior adhesion and exceptional mechanical strength in their electrical applications. This tape is crafted from high-quality polyester film reinforced with glass filament scrim, coated with a non-corrosive acrylic pressure-sensitive adhesive. It is perfect for high-temperature environments and demanding electrical insulation scenarios.
With a thickness of 5.12 mil (0.13 mm) and 6.69 mil (0.17 mm), our filament insulation tape combines the excellent dielectric properties of polyester with the mechanical strength provided by glass fibers. Rated for temperatures up to 311°F (155°C), it guarantees reliable performance across a variety of applications, from bundling motor coils to insulating transformers.
Datasheet
| Item No. | TN-380 | TN-3801 |
| Adhesive Type | Acrylic | Acrylic |
| Thickness | 0.14mm | 0.17mm |
| Adhesion to Steel | 12N/25mm | 15 N/25mm |
| Tensile Strength | 1100N/25mm | 750N/25mm |
| Elongation at Break | 5% | 5% |
| Temperature Resistance | 155ºC | 155ºC |
| Electrical Strength | 5 KV | 5 KV |
| Length | 50M | 50M |
Features
Our advanced filament electrical tape includes several standout features that make it the preferred choice for professionals:
- High Adhesion: The acrylic adhesive ensures a strong bond to diverse surfaces, including magnet wire and copper components, making it a top-tier filament insulation tape.
- Temperature Tolerance: This tape can endure temperatures ranging from -40°F (-40°C) to 311°F (155°C), ensuring reliable performance in extreme conditions.
- Robust Mechanical Strength: Glass filament reinforcement enhances the tensile strength and rigidity of the tape, making it easy to handle during coil-winding operations.
- Exceptional Dielectric Strength: This fiberglass insulating tape offers superior dielectric strength, making it an ideal choice for effective electrical insulation.
- User-Friendly Application: The pressure-sensitive adhesive allows for quick, heat-free application, ensuring a smooth and even adherence.
- Consistent Thickness: Our filament insulation tape maintains a uniform thickness throughout, ensuring dependable performance across all applications.
Applications
The versatility of our advanced filament electrical tape makes it essential for a wide range of applications:
- Coil Winding: Primarily used in coil winding processes, it securely holds magnet wire and copper strips, providing crucial support during manufacturing.
- Lead Wire Anchoring: The exceptional mechanical strength makes it perfect for anchoring lead wires to banding coils, ensuring the integrity of electrical systems.
- Insulation and Banding: This fiberglass reinforced electrical tape effectively shields against electrical interference and environmental factors that could compromise performance.
- Transformer Windings: Specifically designed for dry-type transformers and motor windings, providing the dielectric and mechanical strength needed for low-voltage applications.
