Product description

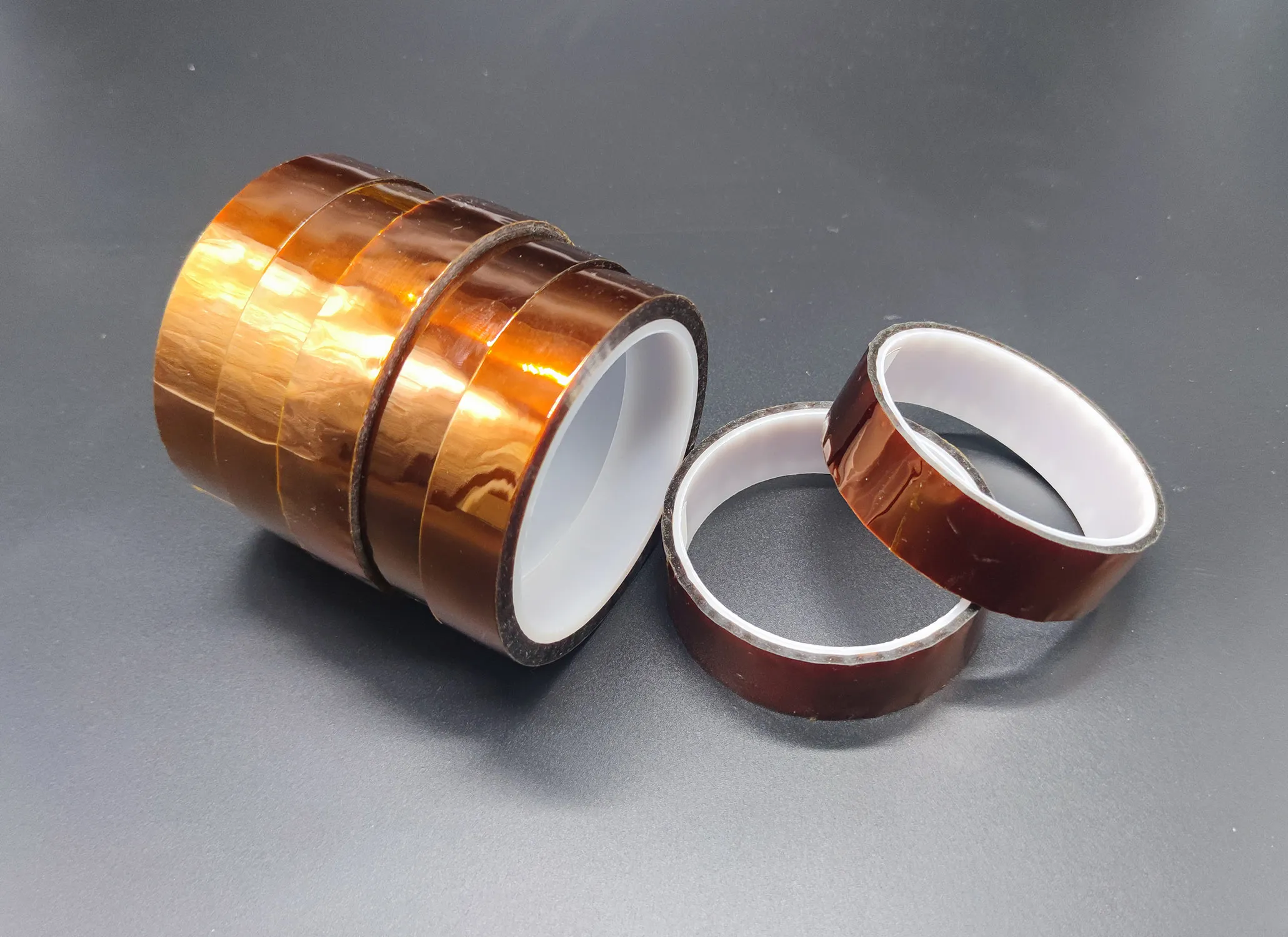

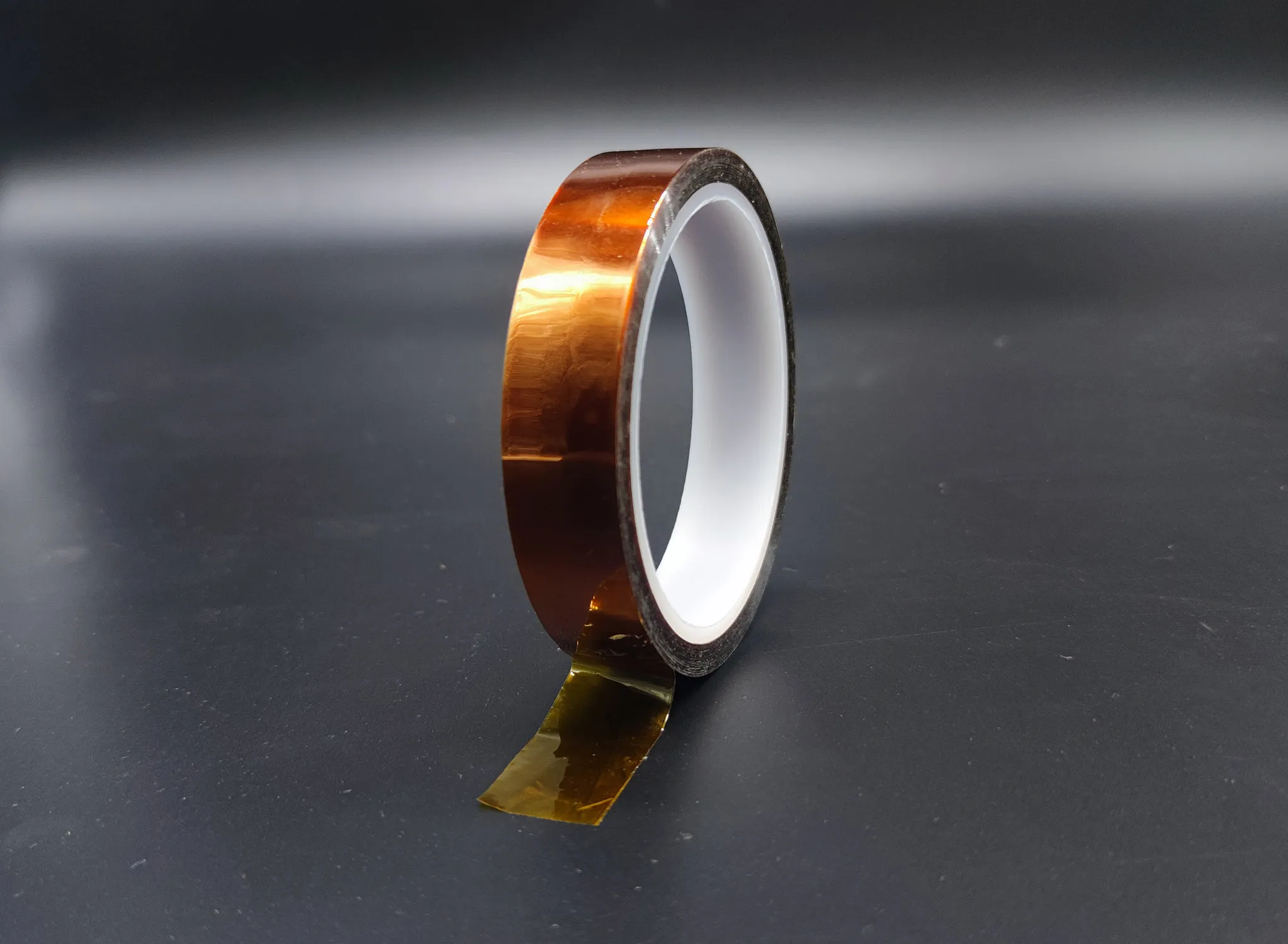

Discover our Silicone Adhesive Kapton Tape, a high-performance solution designed for rigorous industrial applications. This polyimide tape features a strong polyimide backing with an advanced silicone pressure-sensitive adhesive, offering remarkable thermal stability, chemical resistance, and electrical insulation properties. It is perfect for various demanding situations.
Starting at a thickness of 0.025mm, our tape is crafted to ensure high precision and reliability, free from imperfections. Capable of withstanding temperatures up to 260℃ (500℉), it meets the needs of applications requiring robust performance, such as electronic component protection, electric motor insulation, and use in printed circuit boards (PCBs) during high-heat processes. Whether in electronics, aerospace, or automotive industries, our tape is engineered to surpass industry benchmarks.
Datasheet:
| Item No. | TN-630 | TN-630 |
| Adhesive Type | Silicone | Silicone |
| Thickness | 0.06mm | 0.08mm |
| Adhesion to Steel | 6 N/25mm | 6 N/25mm |
| Tensile Strength | 50 N/10mm | 80 N/10mm |
| Elongation at Break | ≥ 80% | ≥ 45% |
| Temperature Resistance | 260ºC | 260ºC |
| Electrical Strength | ≥ 4.5 KV | ≥ 6.0 KV |
| Length | 33M | 33M |
Key Features
Our Kapton tape stands out with several features that enhance its appeal across multiple sectors:
- Extreme Temperature Endurance: Rated for high temperatures up to 260℃, it is your go-to solution for challenging thermal applications.
- Superior Electrical Insulation: The tape provides dielectric strength of ≤ 6.0KV, ensuring outstanding insulation for sensitive electronic devices.
- Clean Removal: Designed for ease of use, it can be removed without leaving any sticky residue, preserving the integrity of surfaces post-application.
- Resilience to Chemicals and Wear: The tape retains its properties in the face of various chemicals and mechanical wear, making it durable in diverse environments.
- Customized Adhesion Levels: Available in different adhesion strengths—low, medium, and high—to meet your specific application requirements.
- Versatile Customization: Capable of die-cutting into specific shapes, it meets specialized manufacturing needs.
Applications
- Electronics Manufacturing: Ideal for wrapping and insulating delicate components, providing needed thermal stability and electrical insulation while soldering.
- 3D Printing: Utilized on print beds to enhance adhesion of initial layers, ensuring quality prints with minimal warping.
- Aerospace Systems: Serves a critical role in protecting wiring and components under extreme conditions, ensuring the safety and efficiency of systems.
- Automotive Industry: Used for insulating electrical connections and safeguarding sensors from excessive heat, crucial for engine applications.
- PCB Assembly: Essential in PCB production, ensuring effective insulation during wave soldering and leading to reliable outcomes in electronics.
- Powder Coating Processes: Common in the powder coating industry for high-temperature masking, guaranteeing clean edges and surface preservation.
- Electrical Apparatus Insulation: Perfect for H-class motor and transformer coil insulation, ensuring long-lasting protection in high-temperature environments.
Choose Us for Quality and Performance
As an established manufacturer in the Kapton tape sector, we are committed to delivering high-quality solutions that meet the diverse needs of our clients. With a range of options including 0.5 mil, 1 mil, or 3 mil thicknesses, we are here to help you find the ideal tape for your projects. Get in touch with us today to learn more about how our silicone adhesive Kapton tape can enhance your operations!
