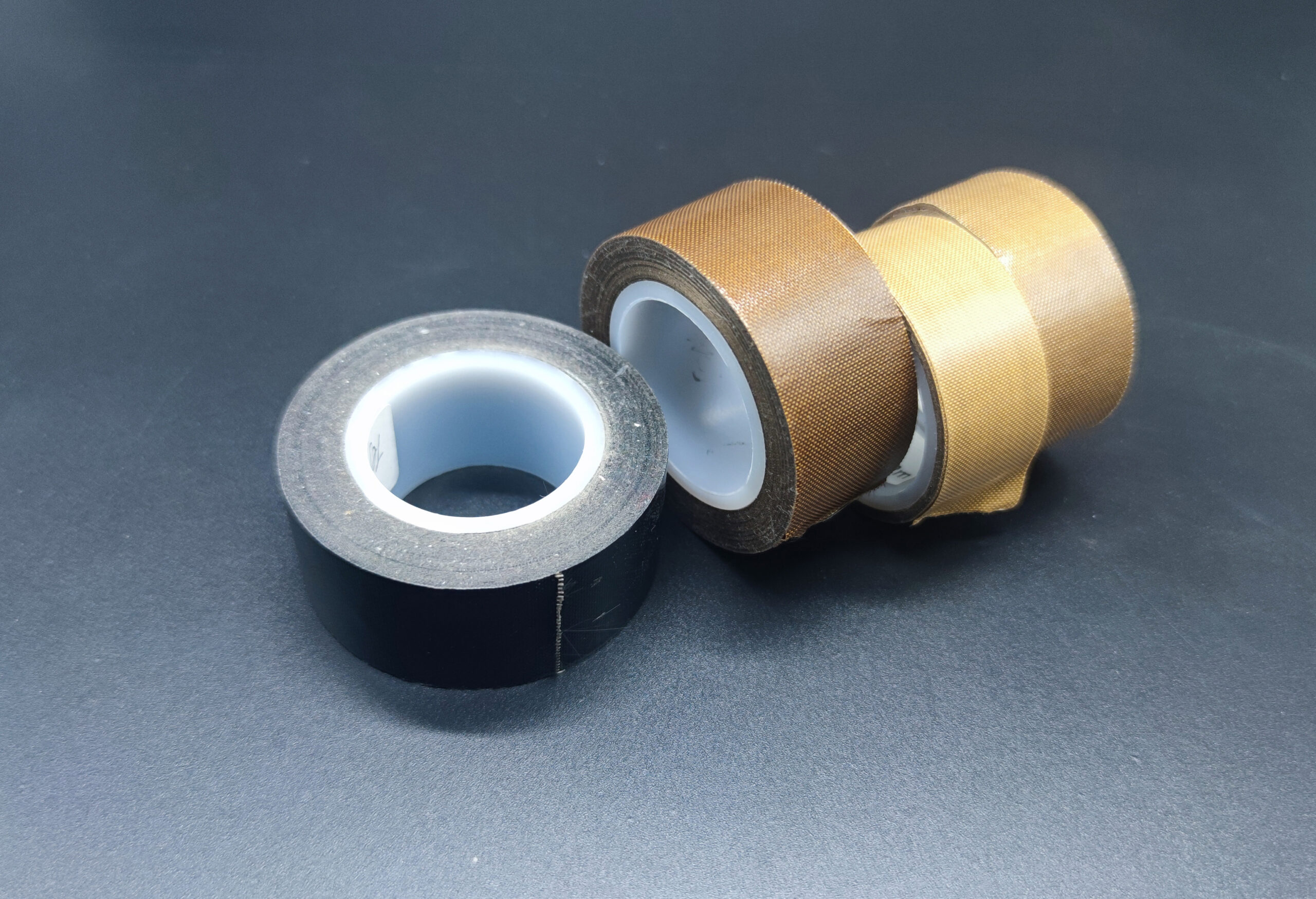

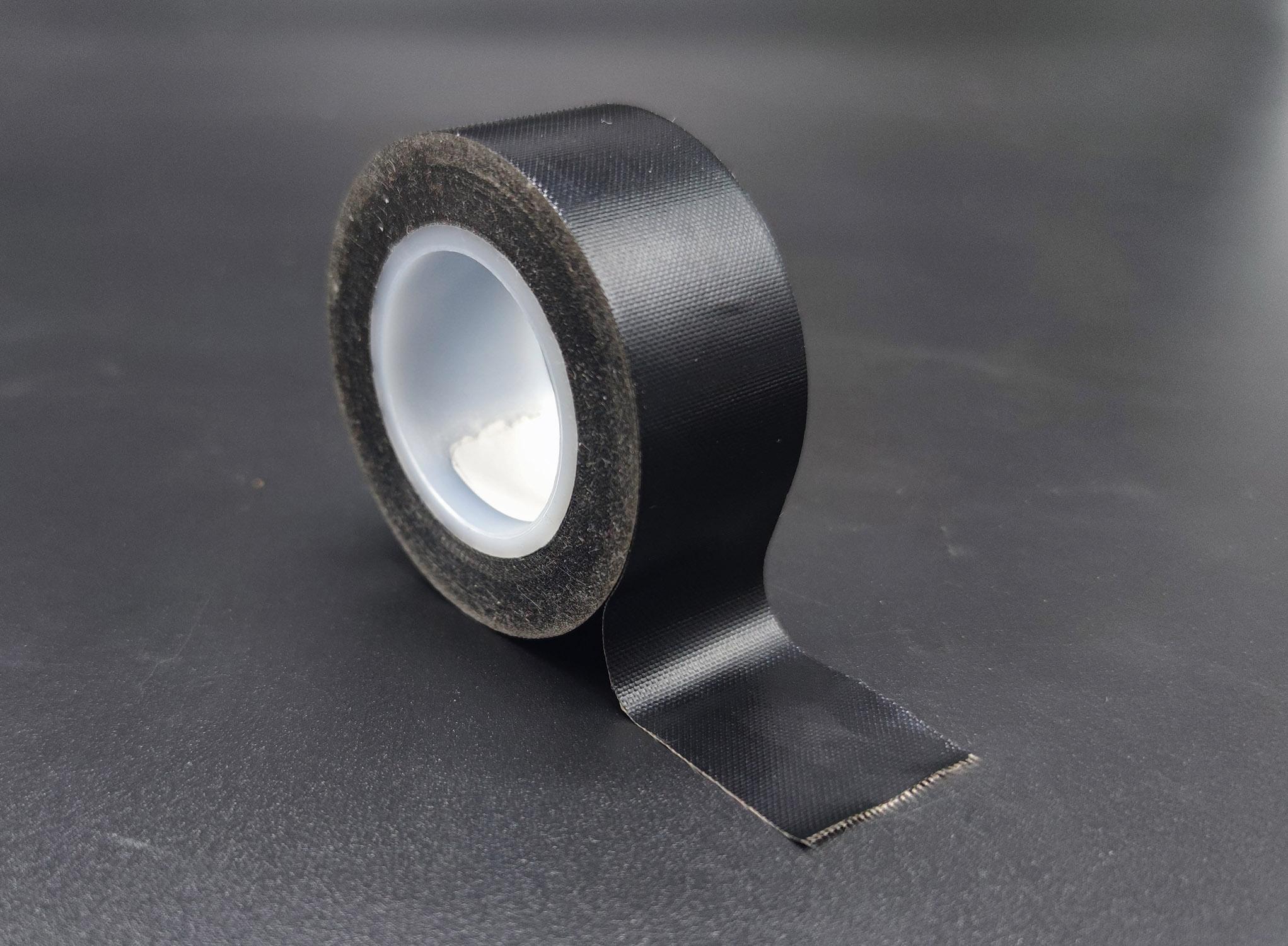

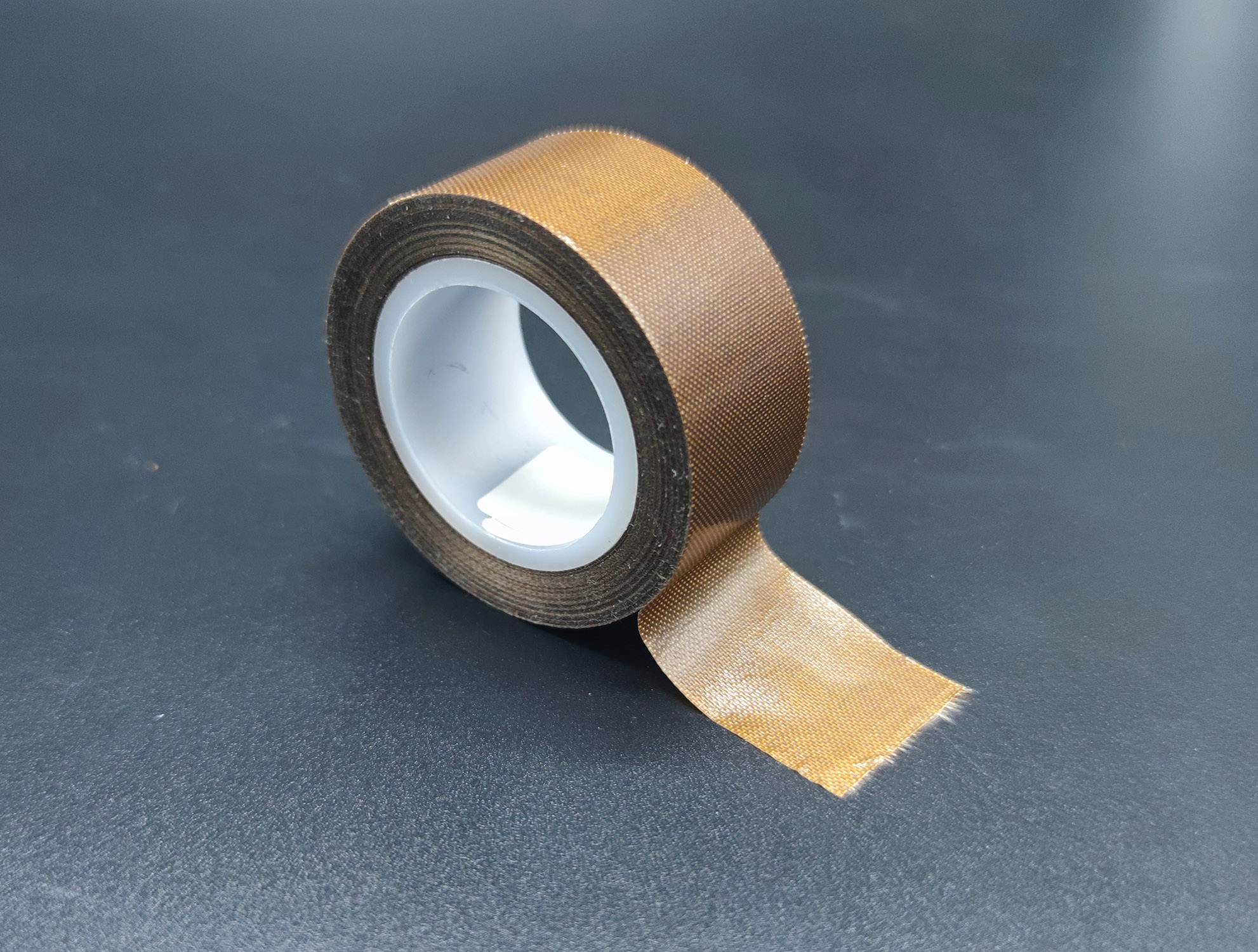

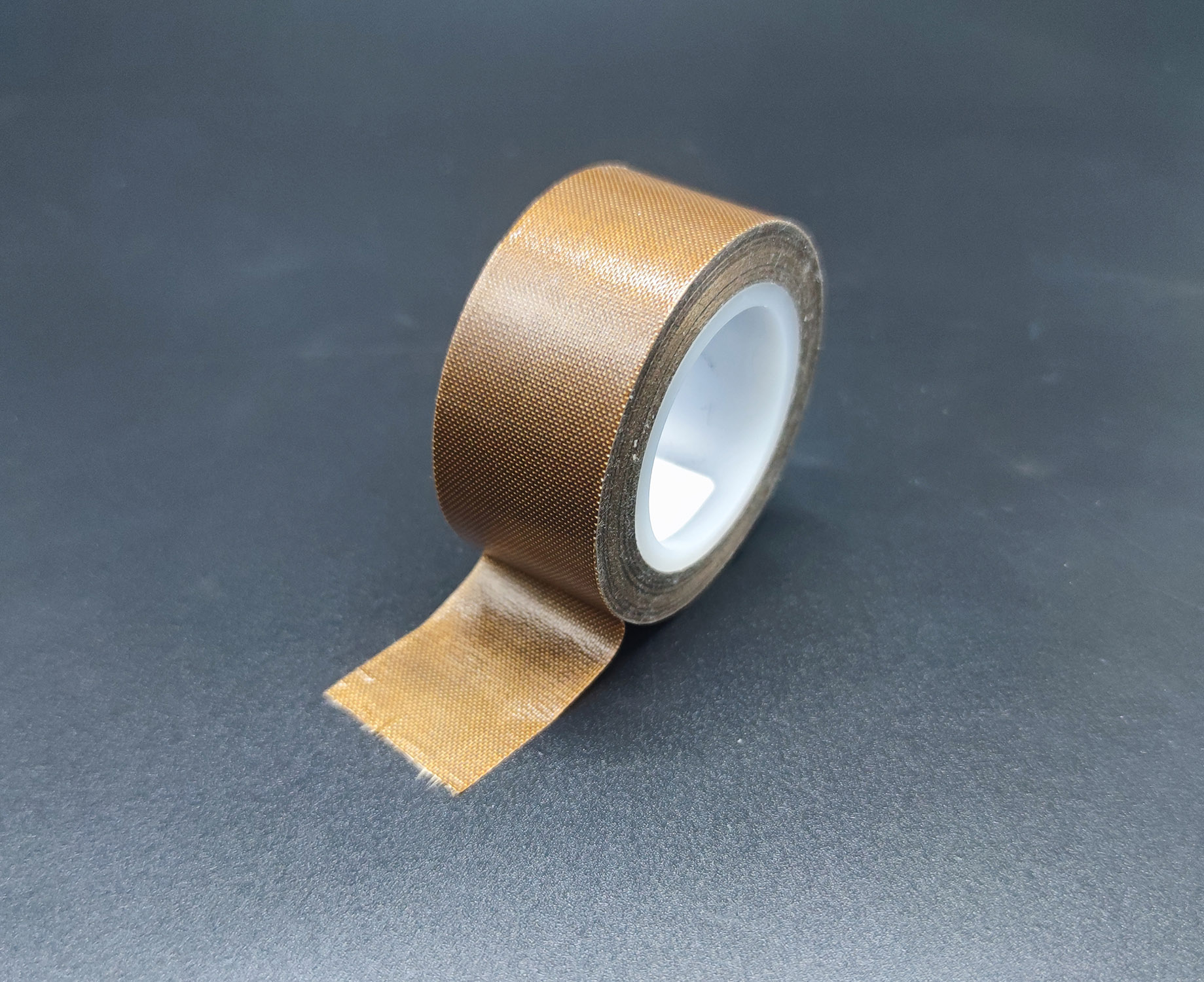

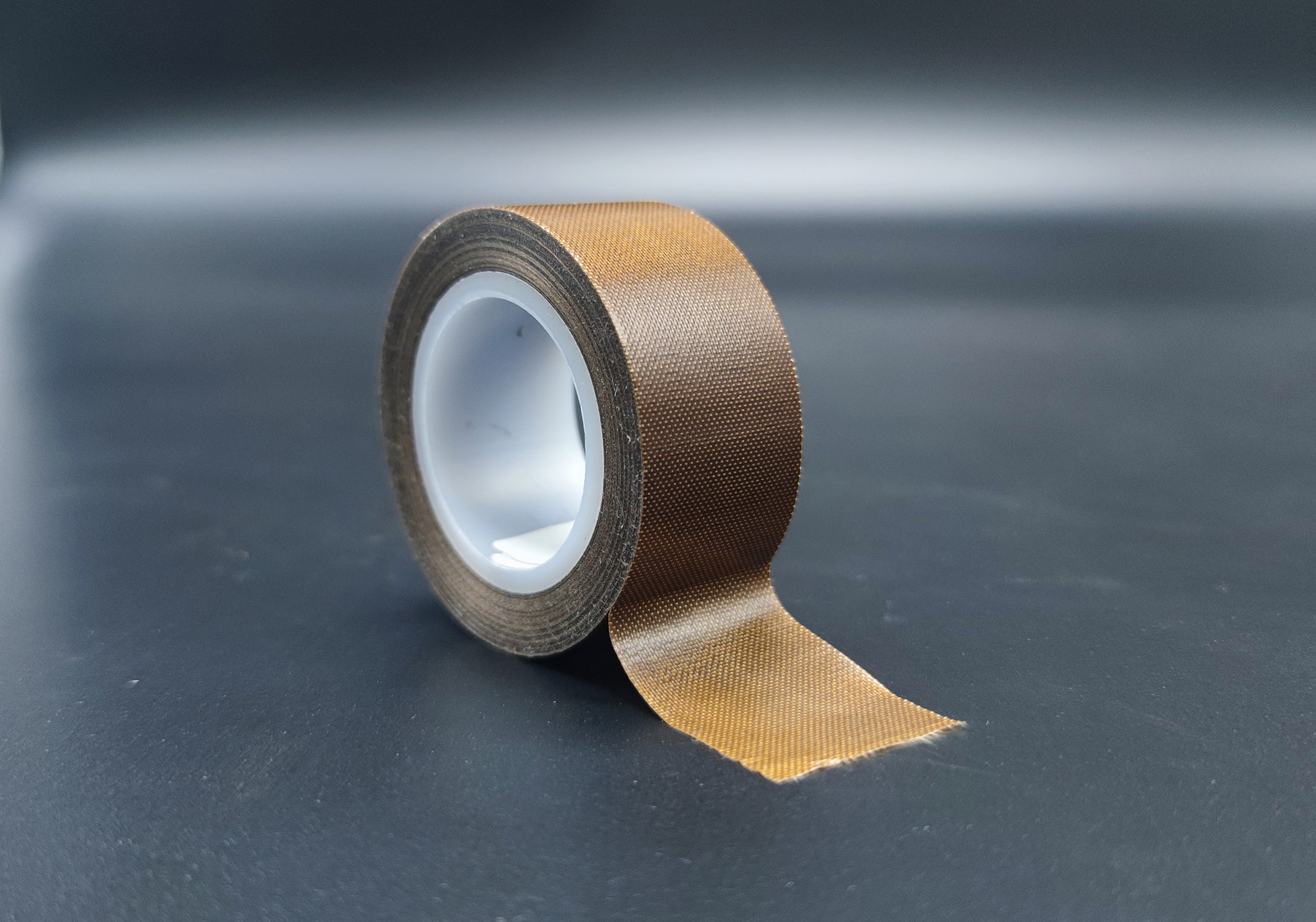

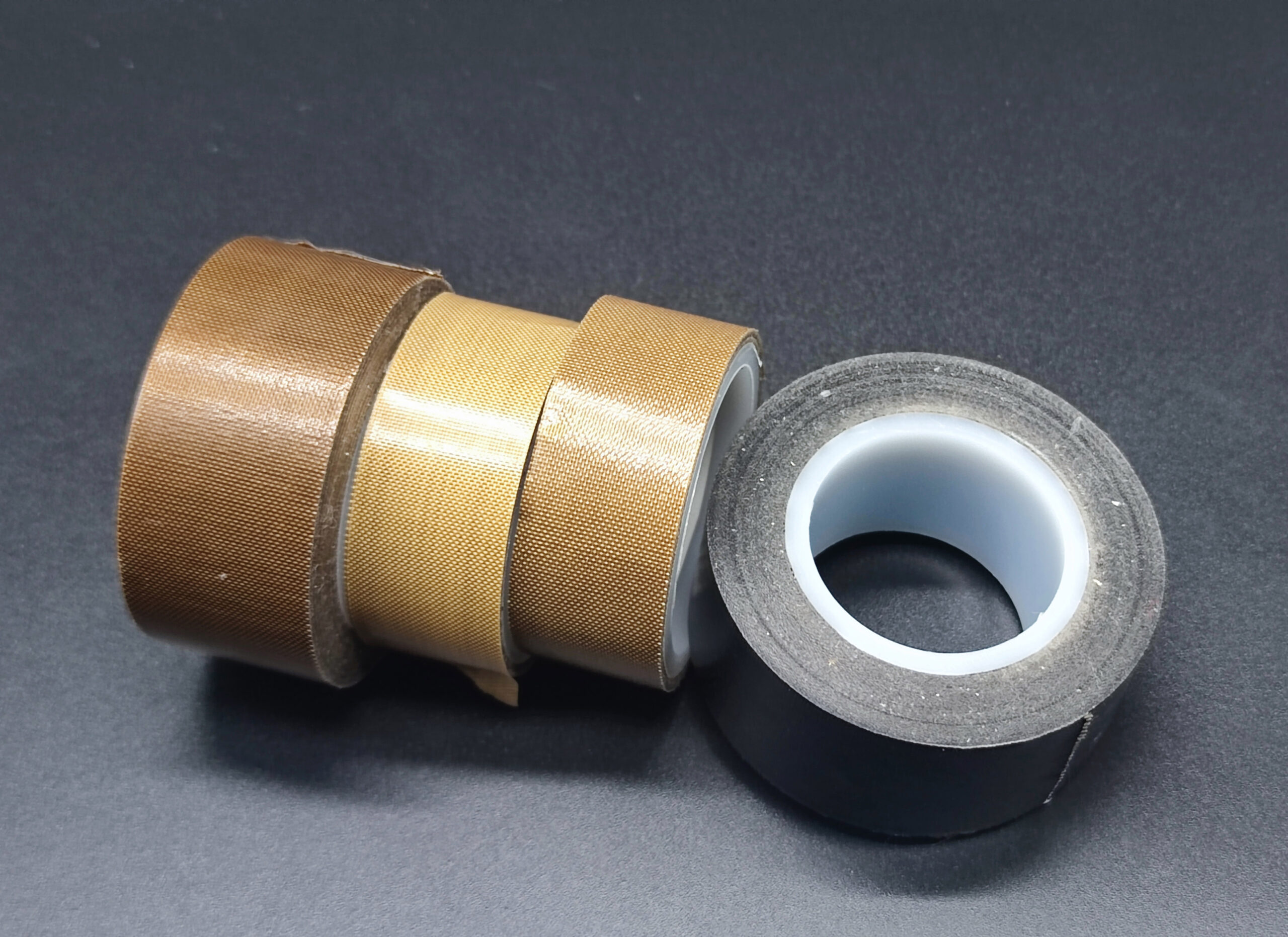

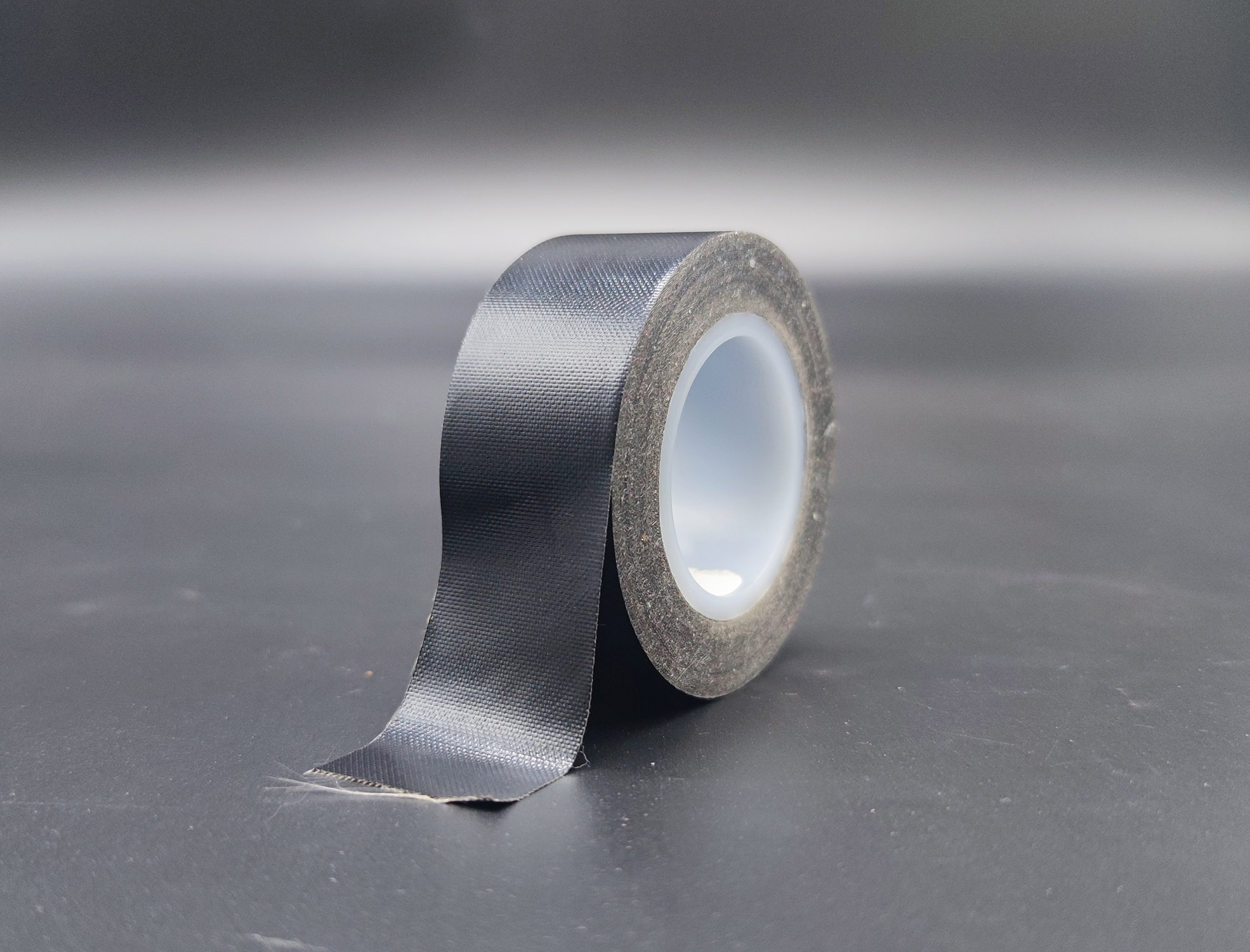

PTFE Fabric Tape

Product Description

Introducing our High-Quality PTFE Glass Fabric Tape, designed for a wide array of industrial applications. This tape is crafted from woven glass fiber cloth, treated with a polytetrafluoroethylene (PTFE) resin, resulting in a durable and versatile adhesive solution that excels in heat resistance, chemical stability, and mechanical strength.

Our PTFE glass adhesive tapes are available in multiple thicknesses, ranging from 0.08 mm to 0.95 mm, providing the flexibility to customize based on your specific requirements. The silicone adhesive enhances adhesion while ensuring easy removal without leaving any residue, making it a cost-effective choice for industries like packaging, food processing, and electronics.

With a temperature tolerance of up to 260°C (500°F), this tape is ideal for high-temperature applications, ensuring reliability in various manufacturing processes. The PTFE coating creates a non-stick surface, minimizing adhesion for applications that require clean operation.

Datasheet

Item No.	TN-710	TN-710	TN-710	TN-710	TN-710
Thickness	0.13mm	0.18mm	0.20mm	0.25mm	0.30mm
Base Material	PTFE fiberglass cloth	PTFE fiberglass cloth	PTFE fiberglass cloth	PTFE fiberglass cloth	PTFE fiberglass cloth
Adhesive	Silicone	Silicone	Silicone	Silicone	Silicone
Adhesion to Steel	22 N/100mm	28 N/100mm	35 N/100mm	48 N/100mm	62 N/100mm
Tensile Strength	900 N/100mm	1700 N/100mm	2300 N/100mm	2750 N/100mm	3650 N/100mm
Max Width	1250mm	1250mm	1250mm	1250mm	1250mm
Temperature Resistance	-70~260°C	-70~260°C	-70~260°C	-70~260°C	-70~260°C

Features

Our PTFE Glass Fabric Tape is designed with several outstanding features that enhance its performance:

• High-Temperature Tolerance: Endures continuous temperatures up to 260°C (500°F), perfect for demanding applications.
• Non-Stick Surface: The PTFE coating minimizes adhesion, facilitating easy release in various applications.
• Chemical Resistance: Suitable for environments with exposure to harsh chemicals, ensuring durability.
• Mechanical Durability: The woven glass fabric provides excellent tensile strength, making it resistant to tears and punctures.
• Residue-Free Removal: The silicone adhesive allows for easy application and removal without leaving any sticky residue.
• Custom Thickness Options: Available in various thicknesses, our tape can be tailored to meet specific application needs.

Applications

Packaging and Food Processing
Our PTFE glass adhesive tape is widely used in packaging machines for heat sealing applications, ensuring effective sealing without sticking to materials.

Electronics Manufacturing
In the electronics sector, this tape is ideal for insulation in transformers and motors, protecting sensitive components during production.

Heat Sealing Machines
Commonly used on heat sealing machines, it provides a non-stick barrier, enhancing operational efficiency and equipment longevity.

PVC Window Production
In PVC window manufacturing, our tape is applied to weld plates to prevent melted PVC from adhering, resulting in cleaner welds.

Mold Release Applications
This tape serves as a mold release agent in composite bonding, allowing for easy demolding and reducing waste.

Insulation and Protection
It functions as an insulating liner, providing a protective barrier against heat and electrical interference in machinery.

Textile Industry
In textiles, our PTFE glass cloth tape is utilized for heat sealing and bonding, capitalizing on its high-temperature resistance.



As a premier PTFE glass cloth tape provider, we are committed to delivering high-quality solutions tailored to meet the unique needs of our clients. Our products are manufactured to the highest standards, ensuring exceptional performance across various applications.
If you are in search of a reliable PTFE glass cloth tape supplier or need customized solutions, we are here to assist you. Contact us today to explore our extensive range of PTFE coated glass fabric tape options and discover how we can enhance your operations.
